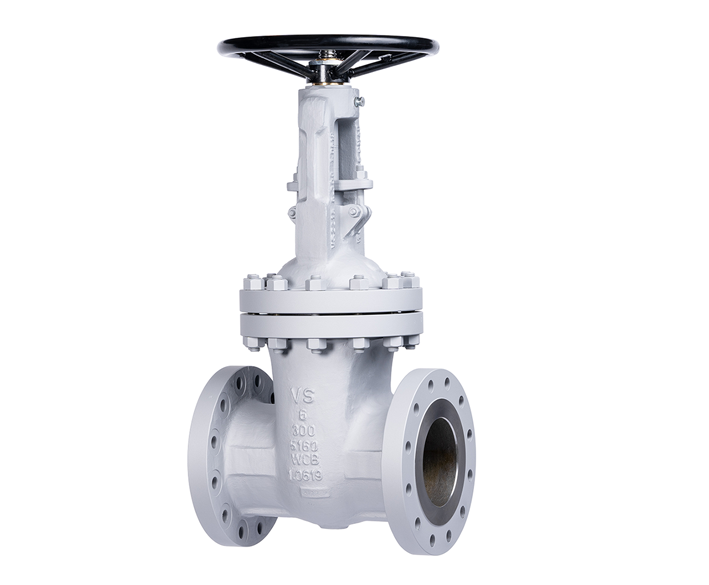

CAST STEEL GATE VALVE

Gate valves are primarily designed for on-off services when a straight-line flow of fluid and minimum restriction is desired. The closure member of gate valves either stops or allows flow through the valve and acts somewhat like the opening or closing of a gate and is called, appropriately, the gate valve.
The gate is also shown as a wedge, due to the shape is resembles. When the valve is open, the closure member is fully drawn up into the valve, leaving a complete opening for the flow stream. Therefore, there is little pressure drop or flow restriction through the valve. Gate valves are used in many industrial applications including the oil and gas industry, pharmaceuticals, manufacturing, automotive, and marine. Gate valves are not suitable for throttling purposes.

Belfast Controls Equipment Trading LLC is the official distributor and stockiest for Valvosider Valves in U.A.E market, and we stock Cast Gate Valves, Globe Valves, Check Valves in Dubai



Available in Stock, Contact our sales at [email protected]

Description

BOLTED BONNET ,OUTSIDE SCREW AND YOKE ,RISING STEM ,NON RISING HANDWHEEL

Design

API 600, BS 1414, ASME B16.34, ISO 10434

Face to face

ASME B16.10

Flanges

ASME B16.5 (2” ÷ 24”), ASME B16.47 (≥ 26”), BW TO ASME B16.25

Testing

API 598, EN 12266

Rating

ASME B16.34

Marking

MSS-SP 25, CE – PED

Certificates

EN 10204 – 3.1 / 3.2

Features On Request

Top flange to iso 5210

Gear operator

Chain wheel operator

Pneumatic actuator

Hydraulic actuator

Electric actuator

Position indicator

Limit switches

Locking/ Interlock system

PTFE soft seats

Stem protection

Stem extension

Lantern ring

Extended stuffing box

Live loaded packing

Drain plug

By pass

BW ends

DIN connections
